Product Detail
- What You Get:
1 * Touch Switch
1 * Instruction

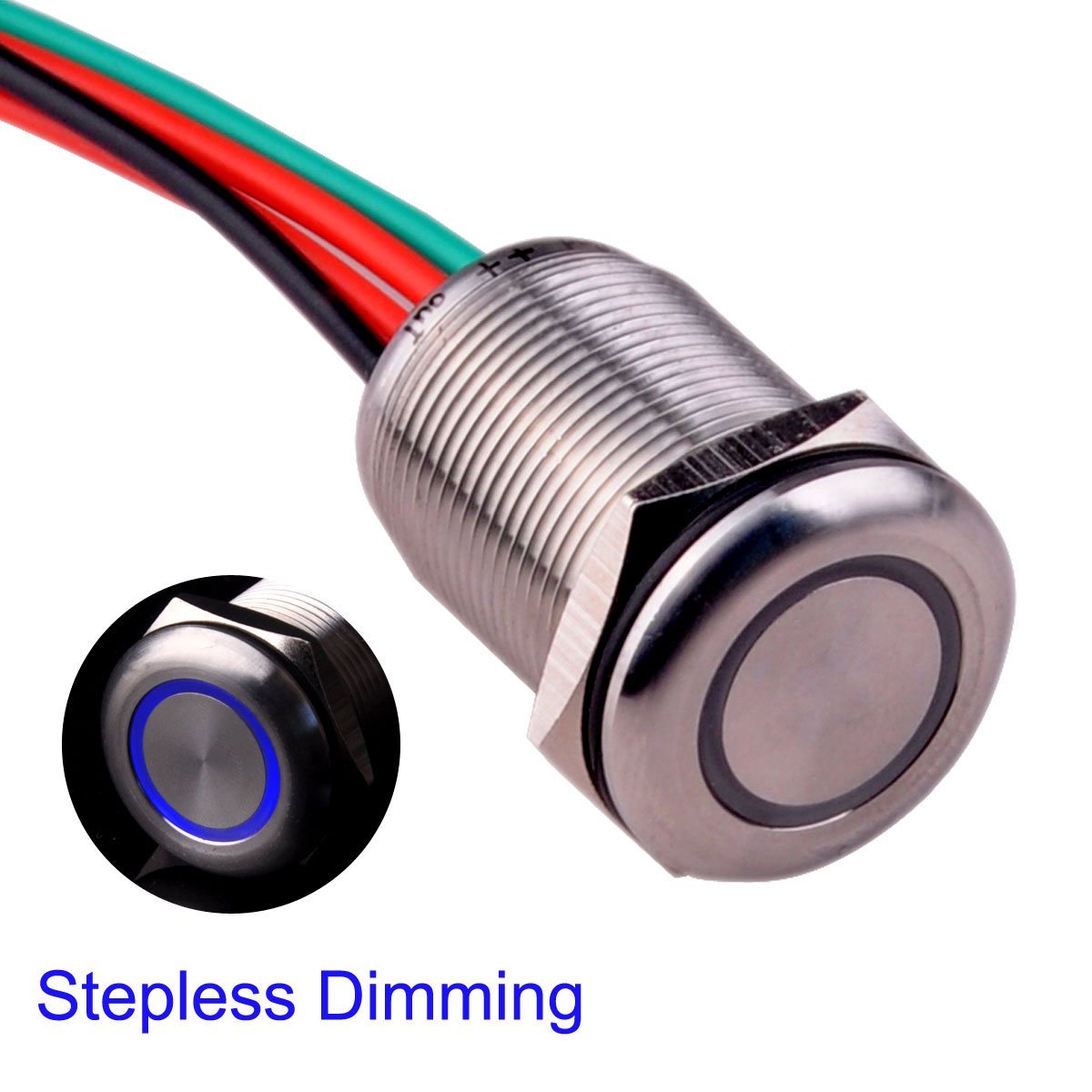

What's the Touch Switch:
Touch switch, just touch it!
The touch switch is rated for 7A MAX /DC 6-24V.
What's the Touch Switch Used for:
Most often the Stepless Dimming switch is used for lights (Such as critical lights, chassis lamp, dome light)
About Stepless Dimming type:
1.The light (device) is off when connecting to electricity. Click it (time < 550ms) once to initiate it with the light on. Click it again to let it be off. Continue to cycle.
2.The initial brightness is 100% of the maximum brightness.
3.Touch and hold it (time > 550ms) to initiate stepless dimming control. The brightness increases when touching and holding, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at maximum level. The brightness decreases when touching and holding again, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at minimum level. Continue to cycle.
4.Click and Holding Touch can be used anytime. There is no interference between these two functions.
What's Note:
*The input power need to be constant-voltage source. A constant-current source (like LED driver, Output: DC12-24V 300ma) CANNOT fit the touch switch!
*The touch switch doesn't work with wet or damp fingers.
*The touch switch cannot be used in AC circuit. Don't exceed the rating volts!
Specifications:
Head diameter: 7/8" ( 22mm )
Mounting hole size: 3/4" ( 19mm )
Depth inc contacts: 1.1" ( 28mm )
Switch Type: Stepless Dimming
Input Voltage: DC 6V-24V
Output Current: 7A MAX
LED color: Blue (LED ON when device ON)
Enclosure material: Stainless Steel
Protection level: IK10
Operating Temperature: -20℃ ～ +55℃
