Product Detail
- What You Get:
1 * Touch Switch
1 * Instruction

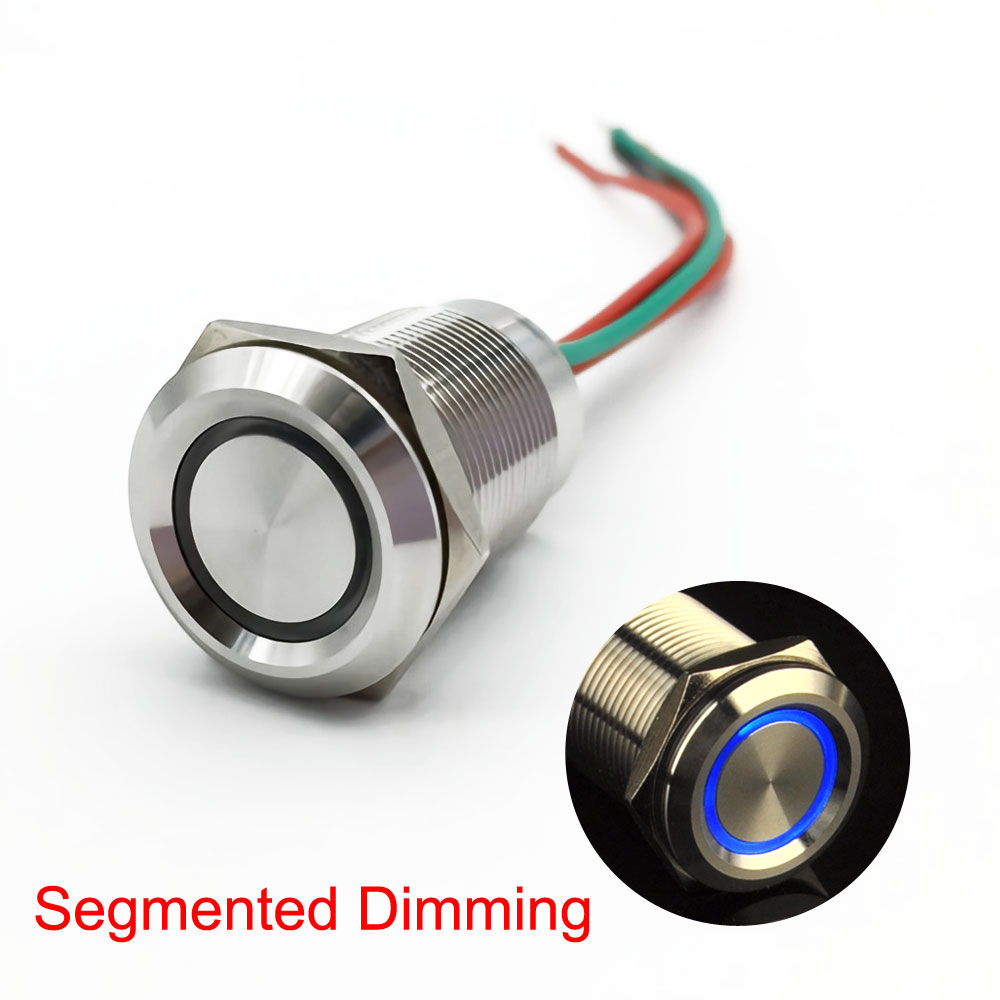

What's the Touch Switch:
Touch switch, just touch it! It is different from the push button switch. You don't need to push anything, just touch it! Like touch your smartphone!
This is a perfect choice if you are in need of a fashion switch! On the front of the switch is an illuminated blue LED ring. On the back there are 4 wires, replace the ordinary terminal pins. Make switch installation a breeze!
The touch switch is rated for 7A MAX /DC 6-24V.
What's the Touch Switch Used for:
Most often the Segmented Dimming switch is used for lights (Such as critical lights, chassis lamp, dome light)
About Segmented Dimming type:
The light is off when initially connecting to electricity.
The degree of brightness will change by each touch in the following order: Low (10% of maximum), Medium (40% of maximum), High (100% of maximum), and off.
Continue to cycle.
What's Note:
*The input power need to be constant-voltage source. A constant-current source (like LED driver, Oupput: DC12-24V 300ma) CANNOT fit the touch switch!
*The touch switch doesn't work with wet or damp fingers.
*The touch switch cannot be used in AC circuit. Don't exceed the rating volts! Only DC 6 - 24V.
What's the Customer Support:
If you have any questions, feel free to contact us by E-mail any time. We get professional customer service staff and technician to help you.
Specifications:
Head diameter: 7/8" ( 22mm )
Mounting hole size: 3/4" ( 19mm )
Depth inc contacts: 1.1" ( 28mm )
Head shape: Recessed
Switch Type: Segmented Dimming
Input Voltage: DC 6V-24V
Output Current: 7A MAX
LED voltage: DC 6V-24V
LED color: Blue (always ON)
Enclosure material: Stainless Steel
Protection level: IK10
Operating Temperature: -20℃ ～ +55℃
