Product Detail
What You Get:
1 * pushbutton switch
1 *
wiring instruction

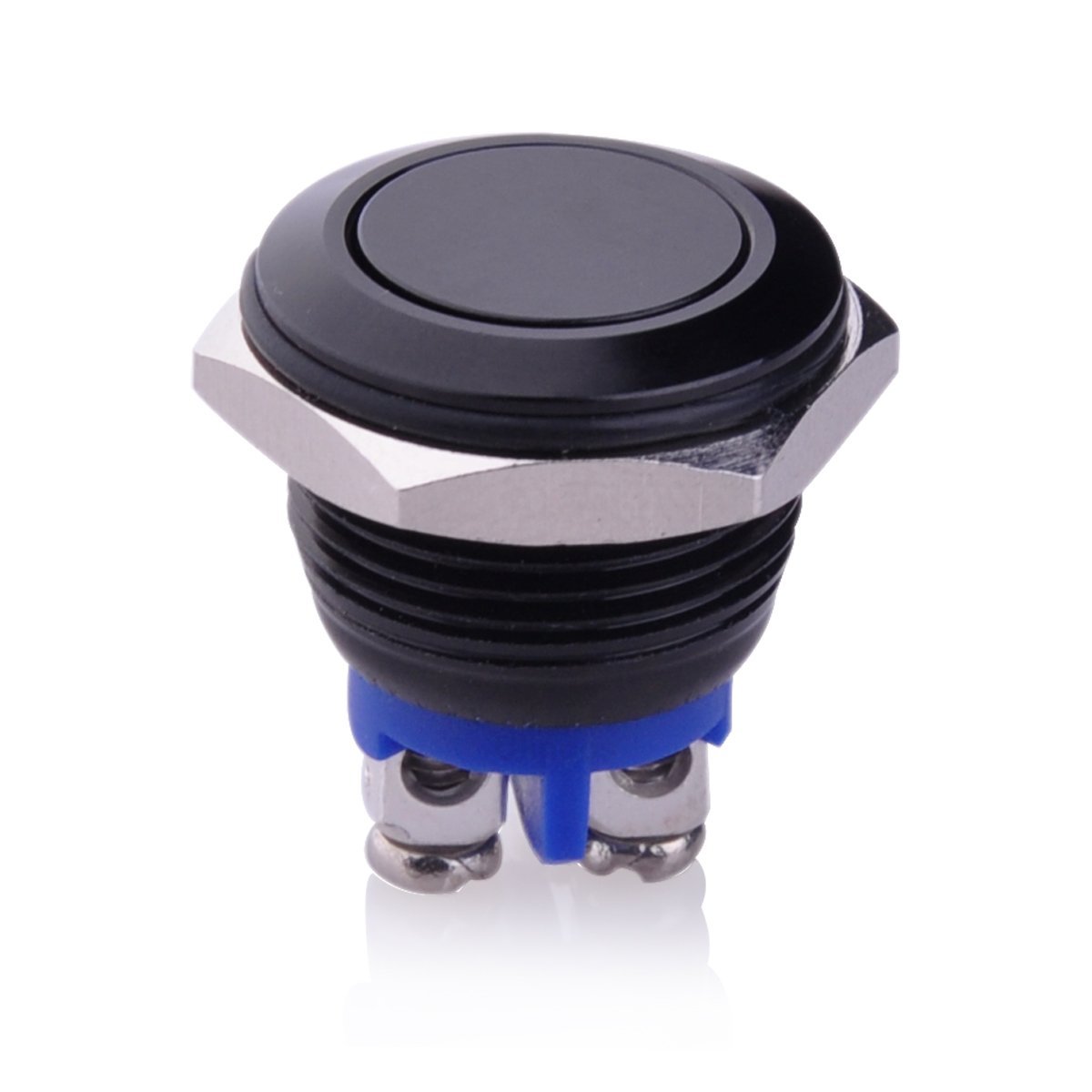

What's the Pushbutton Switch:
This
is a perfect choice if you are in need of a rugged push button! These metal
push buttons are a very tough, small, panel-mount momentary switch. It is a
SPST with 16mm threading and 1mm pitch. Overall length (including leads) is
0.8" and has screw-type terminals for connection. These momentary buttons
are rated up to 3A and 220VAC.
What's the Momentary Switch:
Momentary
switch, normally open, remain in ON state as long as being pressed.
What's the Momentary Switch
Used for:
Most
often momentary switches are used for circuits control in electromagnetic
starter; stuff like relay, Horn Button Switch, PC Power Switch or any circuit
controls.
What's Note:
These
switches come with a rubber O-ring which makes them splash resistant but they
can NOT be submerged in the water.
What's the Customer Support:
If you
have any questions, feel free to contact us by E-mail any time.We get
professional customer service staff and technician to help you.
Specifications:
Head
diameter: 3/4" (18mm)
Button
diameter: 0.47" (12mm)
Mounting
hole size: 5/8" (16mm)
Depth
inc contacts: 0.8" (20mm)
Switch
combination: 1NO
Operation
types: Momentary
Switch
rating: 3A/250VAC
Head
shape : Flat
Enclosure
material : Aluminium alloy
Operation
pressure: about 4N
Protection
level: IP65,IK08
Mechanical
life: 500,000 cycles
