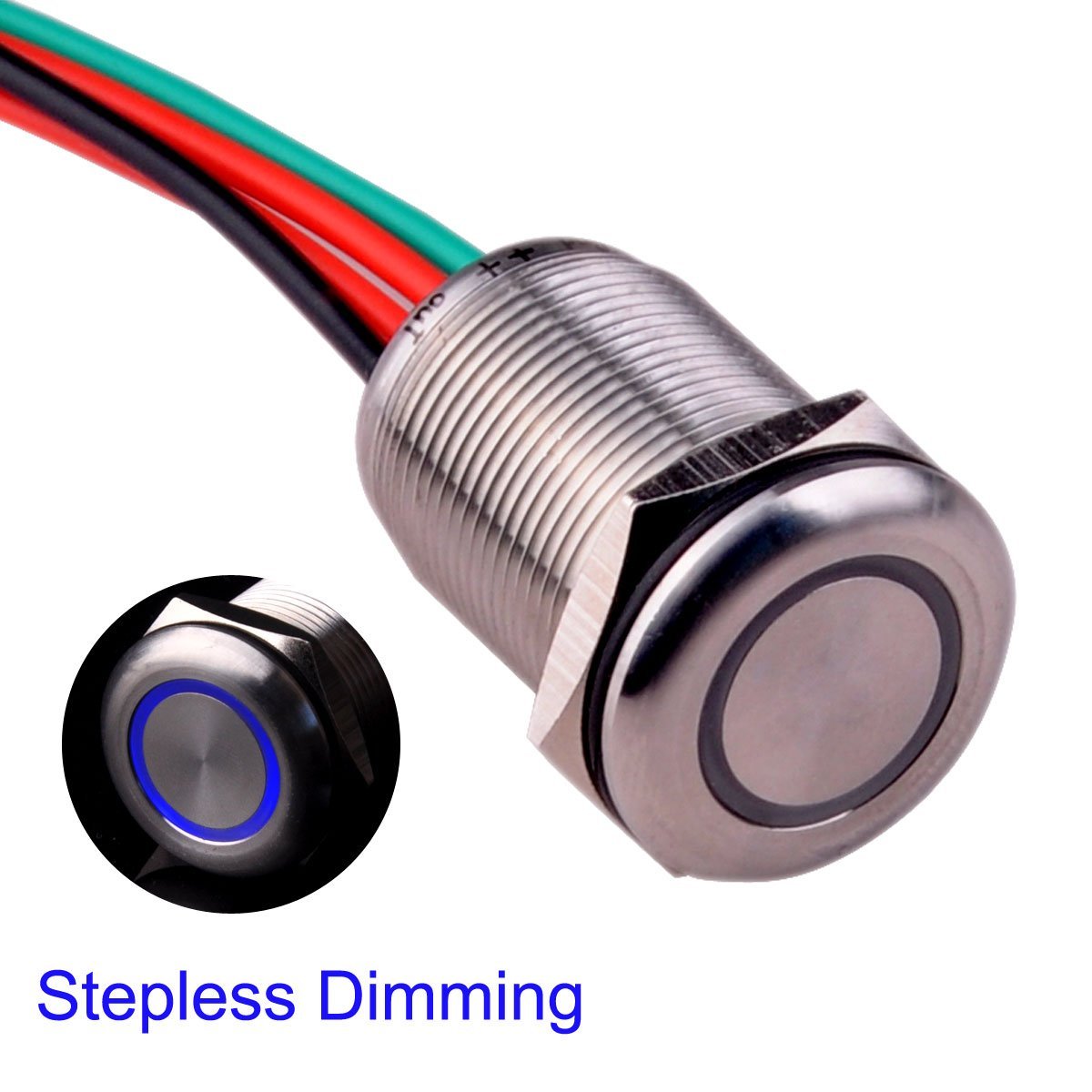

UT19T1 Touch Switch Stepless Dimming Switch for 19mm Hole

Product Detail

What You Get:
1 * Touch Switch
1 * Instruction

What's the Touch Switch:
Touch switch, just touch it! It is different from the push button switch. You don't need to push anything, just touch it! Like touch your smartphone!

The touch switch is rated for 7A MAX /DC 6-24V.

What's the Touch Switch Used for:
Most often the Stepless Dimming switch is used for lights (Such as critical lights, chassis lamp, dome light)

About Stepless Dimming type:
1.The light is off when connecting to electricity. Click it (time < 550ms) once to initiate it with the light on. Click it again to let it be off. Continue to cycle.
2.The initial brightness is 100% brightness.
3.Touch and hold it (time > 550ms) to initiate stepless dimming control. The brightness increases when touching and holding, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at maximum level. The brightness decreases when touching and holding again, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at minimum level. Continue to cycle.
4.Click and Holding Touch can be used anytime. There is no interference between these two functions.

What's Note:
*The touch switch doesn't work with wet or damp fingers.
*The touch switch cannot be used in AC circuit. Don't exceed the rating volts!

Specifications:
Head diameter: 7/8" ( 22mm )
Mounting hole size: 3/4" ( 19mm )
Depth inc contacts: 1.1" ( 28mm )
Switch Type: Stepless Dimming
Input Voltage: DC 6V-24V
Output Current: 7A MAX
LED voltage: DC 6V-24V
LED color: Blue (always ON)
Head shape: Flat
Enclosure material: Stainless Steel
Protection level: IK10
Electrical life: 500,000 cycles
Operating Temperature: -20℃ ～ +55℃
