What You Get:
1 *
pushbutton switch
1 *
resistor (680Ω)
1 *
wiring instruction
What's the Pushbutton Switch:
This

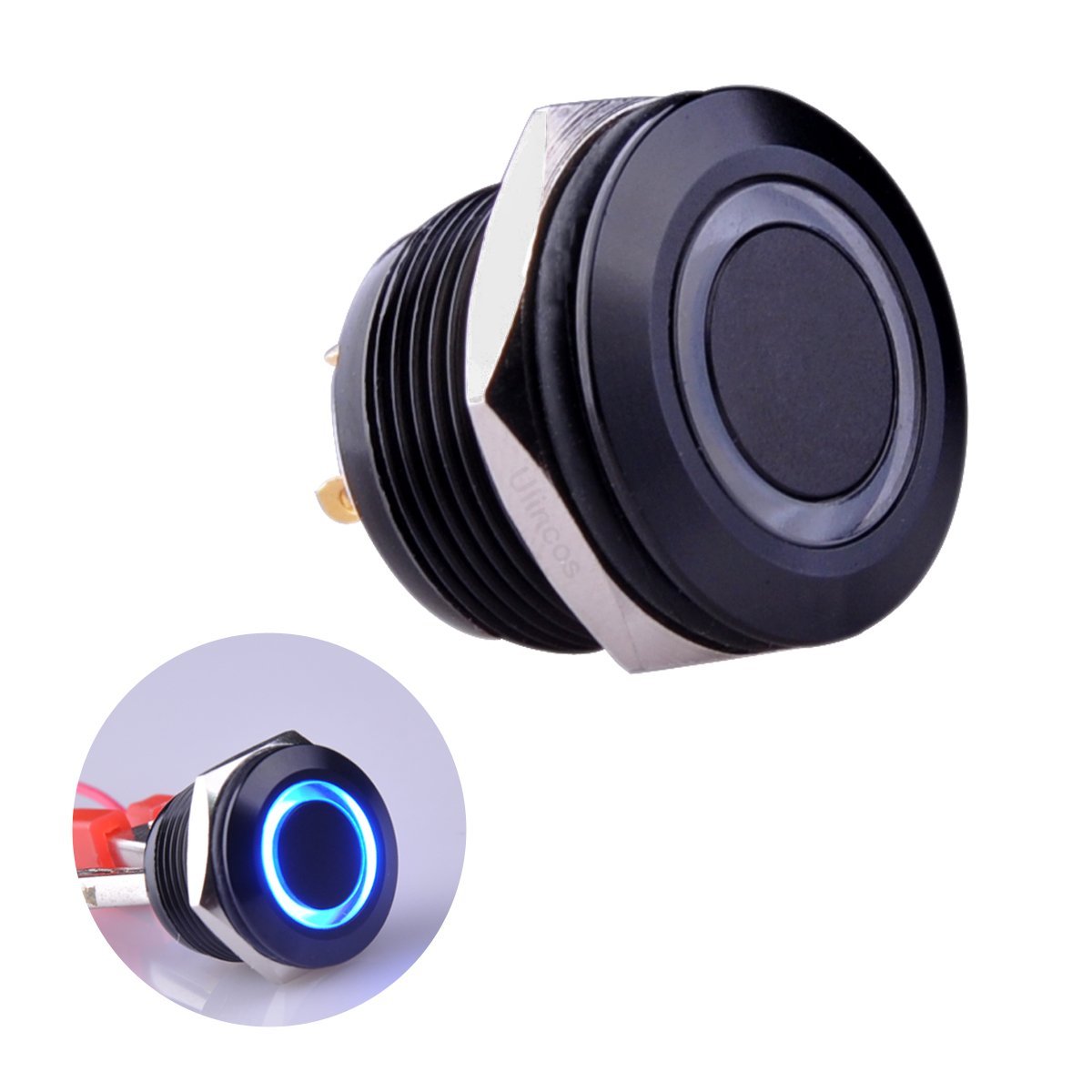

is a perfect choice if you are in need of a rugged push button! These metal
push buttons are a very tough, small, panel-mount momentary switch with an
illuminated blue LED ring. It is a SPST with 19mm threading and 1mm pitch.
These momentary buttons are rated up to 3A and 250VAC while the LED is rated
for 1.8-2.8V.
What's the Momentary Switch:
Momentary
switch, normally open, remain in ON state as long as being pressed.
What's the Momentary Switch
Used for:
Most
often momentary switches are used for circuits control in electromagnetic
starter, stuff like relay, Horn Button Switch, PC Power Switch or any circuit
controls.
What's Note:
-These
switches come with a rubber O-ring which makes them splash resistant but they
can NOT be submerged in the water.
-The
switch is rated up to 3A/250VAC, but the LED is rated for 1.8-2.8V, if you want
the switch and LED to work under 12V, you need to add the resistor.
What's the Customer Support:
If you
have any questions, feel free to contact us by E-mail any time.We get
professional customer service staff and technician to help you.
Specifications:
Head
diameter: 7/8" (22mm)
Button
diameter: 0.4" (11mm)
Mounting
hole size: 3/4" (19mm)
Depth
inc contacts: 0.8" (20mm)
Switch
combination: 1NO
Operation
types: Momentary
Switch
rating: 3A/250VAC
LED
voltage: 2.8V DC
Resistor:
680Ω
Head
shape: Flat
Enclosure
material: Aluminium alloy
Protection
level: IP65,IK08Protection level: IP65,IK08
Mechanical
life: 500,000 cycles
