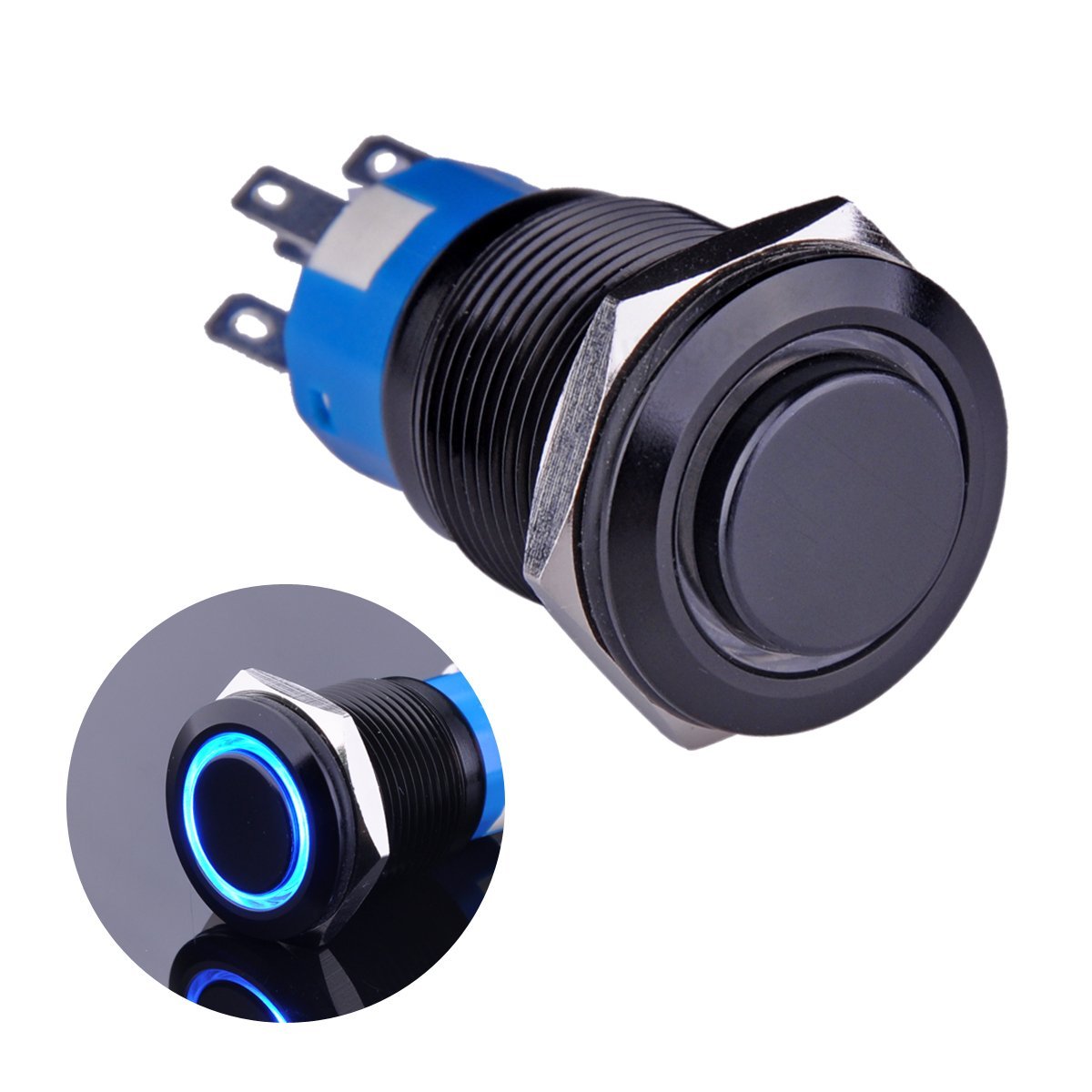

U19C2B Latching Push Button Switch Black Metal Shell with Blue LED Ring for 19mm Hole

Product Detail

What You Get:
1 * pushbutton switch
1 * wiring instruction

What's the Pushbutton Switch:
This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount latching switch with an illuminated blue LED ring. It is a SPDT with 19mm threading and 1mm pitch. This button is perfect for basic On/Off functions. These latched buttons are rated up to 5A and 220VAC while the LED is rated for 5-12V.

What's Latching Switch:
Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatches

What's Latching Switch Used for:
Most often latching switches are used for various additional electric equipment, inside & outside the car(Such as critical lights, chassis lamp, fog lamps, dome light)

What's Note:
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater
-The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out

What's Customer Support:
If you have any questions, feel free to contact us by E-mail any time. We get professional customer service staff and technician to help you

Specifications:
Head diameter: 7/8"" (22mm)
Mounting hole size: 3/4"" (19mm)
Depth inc contacts: 1.5"" (38mm)
Switch combination: 1NO1NC
Operation types: Latching
Switch rating: 5A/250VAC
LED voltage: 12V DC
LED color: Blue
Head shape: High flush
Enclosure material: Aluminium alloy
Protection level: IP67, IK10
