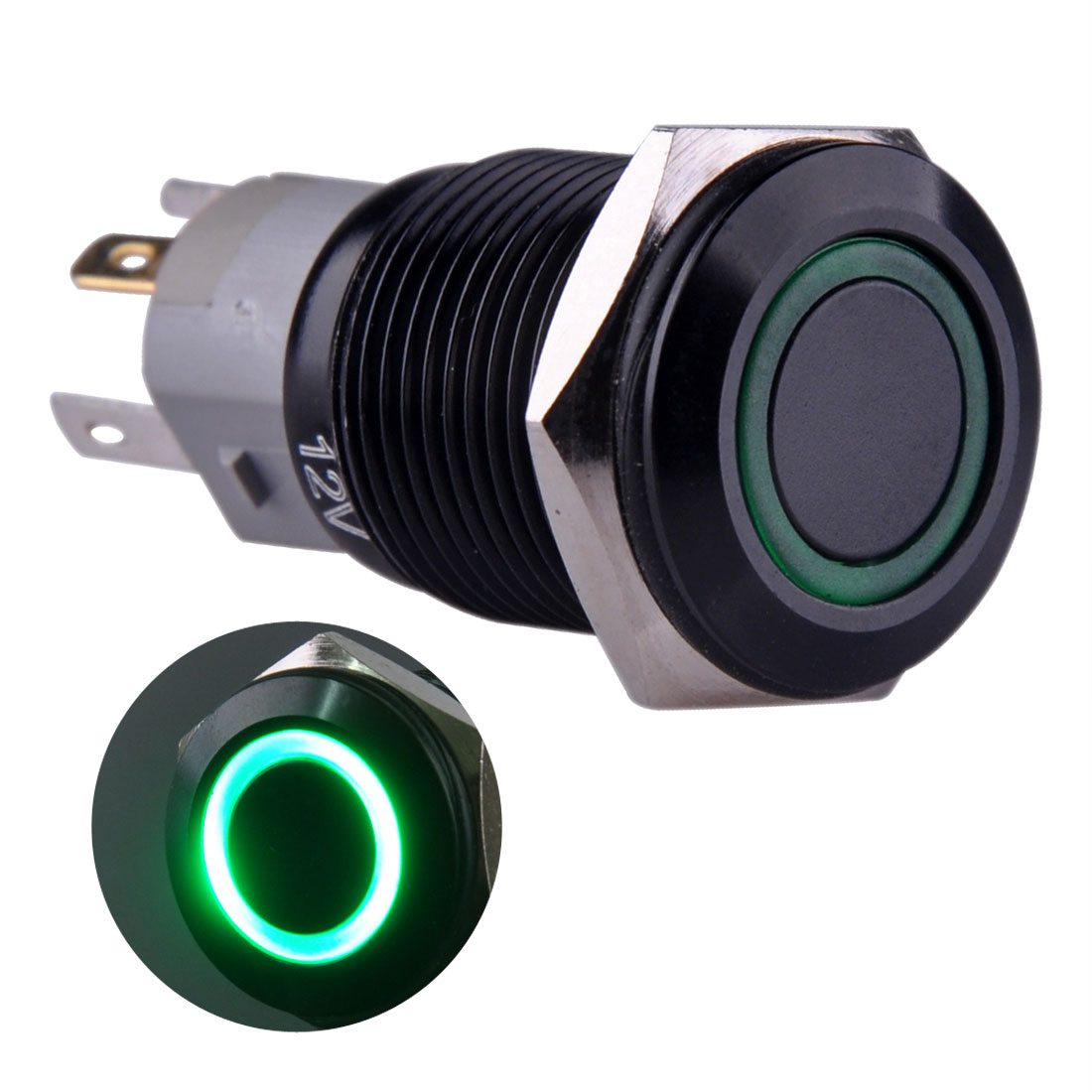

U16F1G Momentary Push Button Switch Black Metal Shell with Green LED Ring Suitable for 16mm Hole

Product Detail

What You Get
1 * pushbutton switch
1 * wiring instruction

What's the Pushbutton Switch
This is a perfect choice if you are in need of a rugged push button! These push buttons are a very tough, small, panel-mount momentary switch with an illuminated green LED ring. It is a SPST with 16mm threading. These latched buttons are rated up to 5A and 250VAC while the LED is rated for 5-12V. You can add a wire connector, then you don't need to solder the terminals, make fitting very easy.

What's the Momentary Switch
Momentary switch, normally open, remain in ON state as long as being pressed

What's the Momentary Switch Used for
Most often momentary switches are used for circuits control in electromagnetic starter, stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls

What's Note
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water

What's the Customer Support
If you have any questions, feel free to contact us by E-mail any time.We get professional customer service staff and technician to help you

Specifications
Head diameter: 3/4" ( 18mm )
Button diameter: 0.36" ( 9mm )
Mounting hole size: 5/8" ( 16mm )
Depth inc contacts: 1.3" ( 34mm )
Switch combination: 1NO1NC
Operation types: Momentary
Switch rating: 5A/250VAC, 5A/30VDC
LED rating: 15mA, AC/DC 12V
LED color: Green
Head shape: Flat
Enclosure material: Aluminium alloy
Protection level: IP67, IK10
