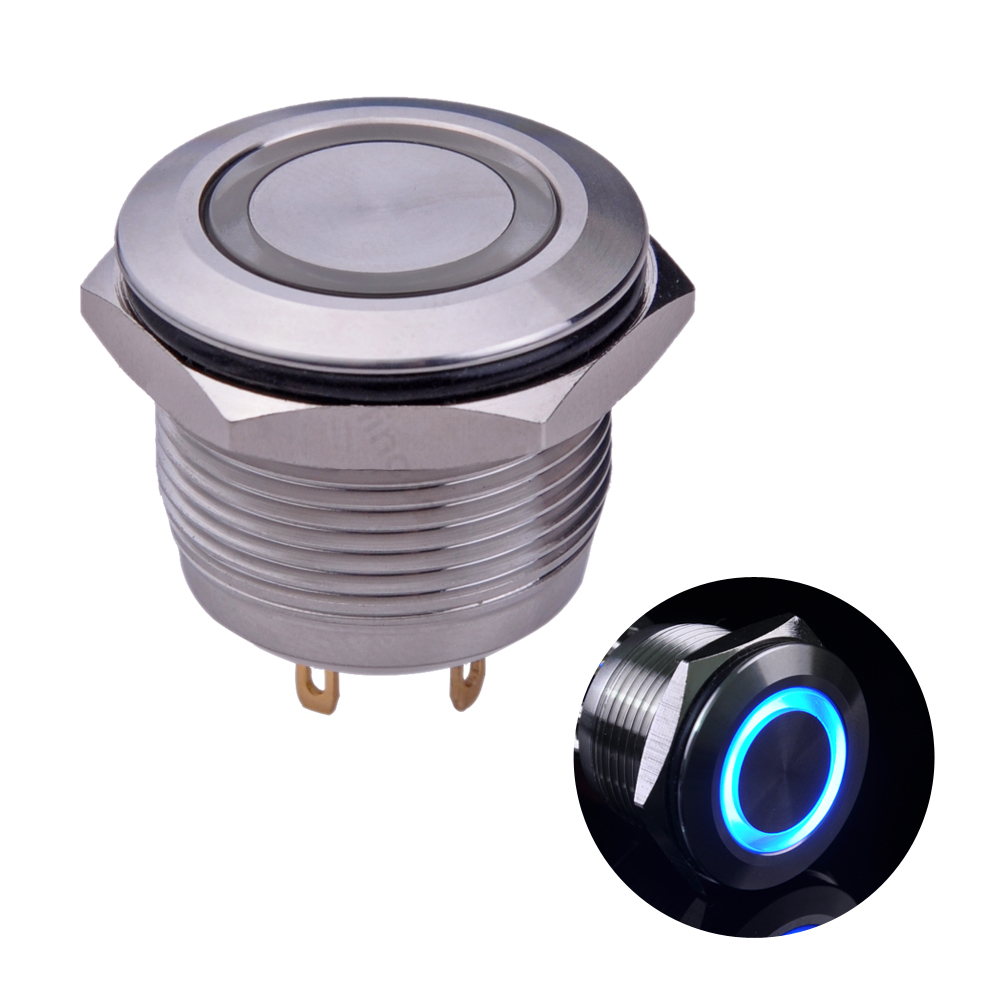

U19D1SB Momentary Push Button Switch Silver Stainless Steel Shell with Blue LED Ring Suitable for 19mm Hole

Product Detail

What You Get
1 * pushbutton switch
1 * resistor (680Ω)
1 * wiring instruction

What's the Pushbutton Switch
This is a perfect choice if you are in need of a heavy duty push button! These push buttons are a very tough, small, panel-mount momentary switch with an illuminated blue LED ring. It is a SPST with 19mm threading. These momentary buttons are rated up to 3A and 250VAC while the LED is rated for 1.8-2.8V

What's the Momentary Switch
Momentary switch, normally open, remain in ON state as long as being pressed

What's the Momentary Switch Used for
Most often momentary switches are used for circuits control in electromagnetic starter, stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls

What's Note
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water
-The switch is rated up to 3A/250VAC, but the LED is rated for 1.8-2.8V, if you want the switch and LED to work under 12V, you need to add the resistor

What's the Customer Support
If you have any questions, feel free to contact us by E-mail any time.We get professional customer service staff and technician to help you

Specifications
Head diameter: 7/8" (22mm)
Button diameter: 0.4" (11mm)
Mounting hole size: 3/4" (19mm)
Depth inc contacts: 0.8" (20mm)
Switch combination: 1NO
Operation types: Momentary
Switch rating: 3A/250VAC, 3A/30VDC
LED rating: 15mA, AC/DC 2.8V
Resistor: 680Ω
Head shape: Flat
Enclosure material: Stainless Steel
Protection level: IP65,IK08
