What You Get:
1 * pushbutton switch
1 * wiring instruction
What's the Pushbutton Switch:

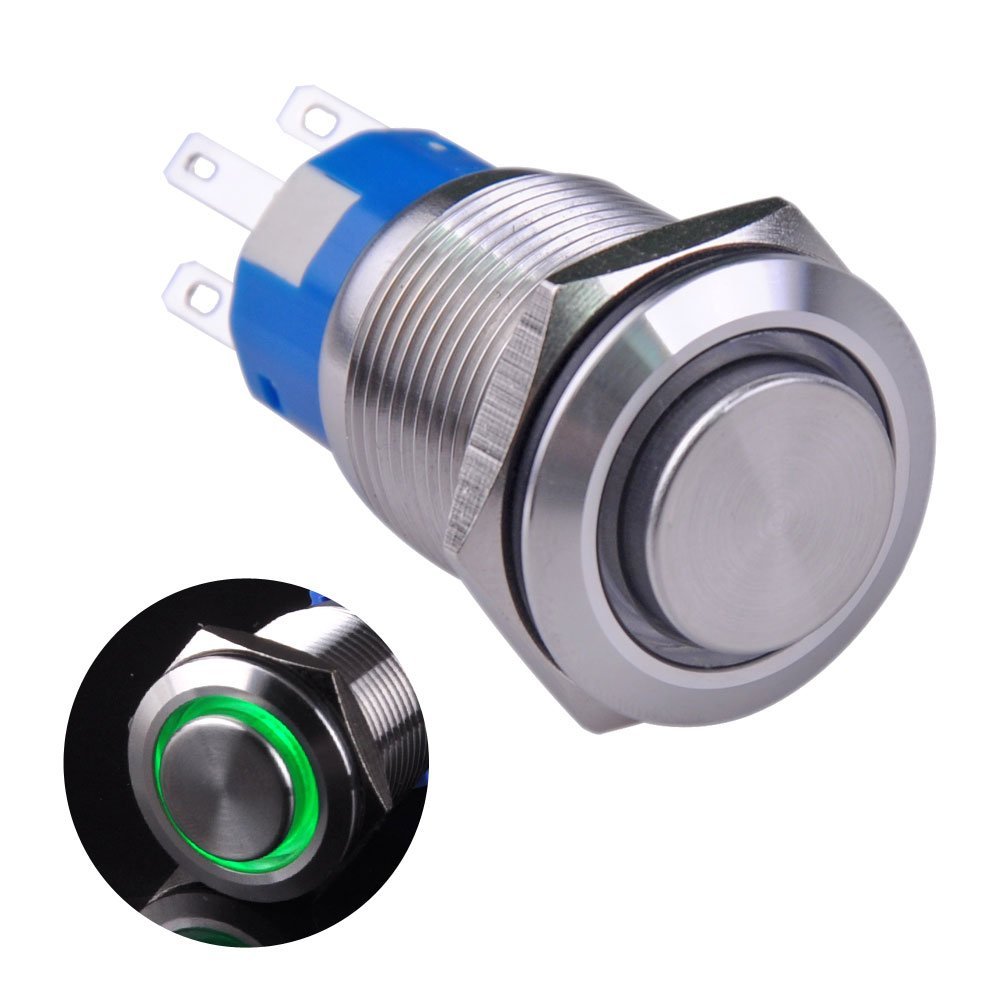

This is a perfect choice if you are in need of a rugged push button! These
metal push buttons are a very tough, small, panel-mount latching switch with an
illuminated green LED ring. It is a SPDT with 19mm threading and 1mm pitch.
This button is perfect for basic On/Off functions. These latched buttons are
rated up to 5A and 250VAC while the LED is rated for 5-12V.
What's Latching Switch:
Latching switch, push it down, it stays down and latched in the closed
position, press the button again and it releases and unlatches
What's Latching Switch Used for:
Most often latching switches are used for various additional electric
equipment, inside & outside the car(Such as critical lights, chassis lamp,
fog lamps, dome light)
What's Note:
-These switches come with a rubber O-ring which makes them splash resistant but
they can NOT be submerged underwater
-The project you are going to be used for, don't let current go above 5 amps.
Or the switch will get warm and to be burned out
What's Customer Support:
If you have any questions, feel free to contact us by E-mail any time. We get
professional customer service staff and technician to help you
Specifications:
Thread depth: 5/8" (16mm)
Head diameter: 7/8" (22mm)
Mounting hole size: 3/4" (19mm)
Depth inc contacts: 1.5" (38mm)
Switch combination: 1NO1NC
Operation types: Latching
Switch rating: 5A/250VAC, 5A/30VDC
LED rating: 15mA, AC/DC 12V
LED color: Green
Head shape: High flush
Enclosure material: Stainless steel
Protection level: IP67, IK10
